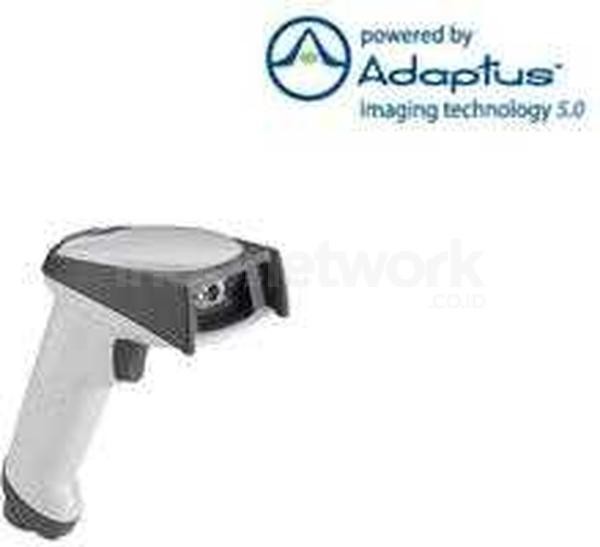

BARCODE SCANNER HHP IT 4206
Barcode reader yang dapat membaca barcode dan immage code dengan kekuatan yang sangat exilent dapat digunakan untuk industrial dan Department store
Garansi 1 tahun
Aiming (Green LED): 526nm +30nm
Image: 752x480. Binary, TIFF, or JPEG output.
Skew Angle: +40o
Pitch Angle: +40o
Horizontal Velocity: 4 in. (10 cm) per second
Length: 5.5 in. (14.0 cm)
Height: 5.3 in. (13.5 cm)
Width: 2.6 in. (6.6 cm)
Weight: 4.5 oz. (127.6 g)
Housing: UL 94V0 grade
Power Requirements: 5Vdc +10% at scanner
Current Draw (Typical): Input - 5 V, Scanning - 382 mA, Idle - 53 mA
Noise Rejection: Maximum 100mV peak to peak, 10 to 100 kHz
Operating Temperature: +32oF to +122oF (0oC to +50oC)
Storage Temperature: -40oF to 140oF (-40oC to +60oC)
Humidity: 0 to 95%, non-condensing
Mechanical Shock: Operational after 25 drops from 4.9 ft. (1.5 m) to concrete
Ambient Light: Up to 100,000 lux (full sunlight)
ESD Protection: Functional after 100 8kV discharges
Vibration: Withstands 1G peak from 8 to 80 Hz
Agency: FCC Class B, CE EMC Class B, CE Low Voltage Directive, IEC60825-1 LED Safety: Class 1, C-Tick N10410
MTBF: per MIL-HDBK-217F Ground Benign exceeds 70,000 hours
2 Dimensional: PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code, Aztec, Code 49, and EAN•UCC Composite
Linear: Codabar, Code 39, Interleaved 2 of 5, Code 93, Code 128, UPC, EAN, RSS, Codablock, and BC412*
Postal: Postnet, Planet Code, British Post, Canadian Post, Japanese Post, KIX (Netherlands Post)
OCR Fonts: OCR-A, OCR-B
Interfaces: All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, USB, TTL level RS-232, wand emulation mode, TTL level Serial Wedge.
